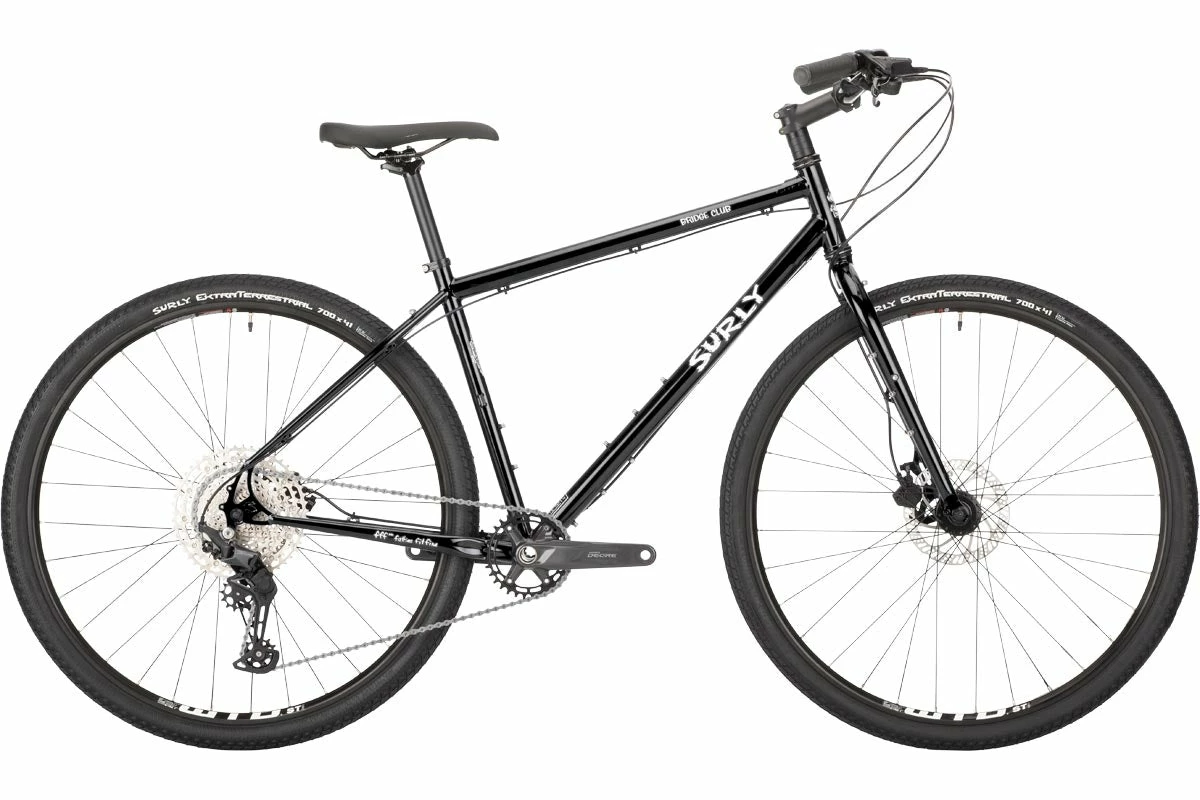

Vélo Surly Bridge Club 700C 2021

Cadre Surly Bridge Club
Fourche Surly Bridge Club
Collier de tige de selle Surly Inox 30.0
Jeu de direction Cane Creek 40
Freins Tektro HD-M275
Leviers de frein Tektro HD-M275
Disques Tektro 160 / 160mm
Manettes Shimano Deore M5100 Rapid Fire

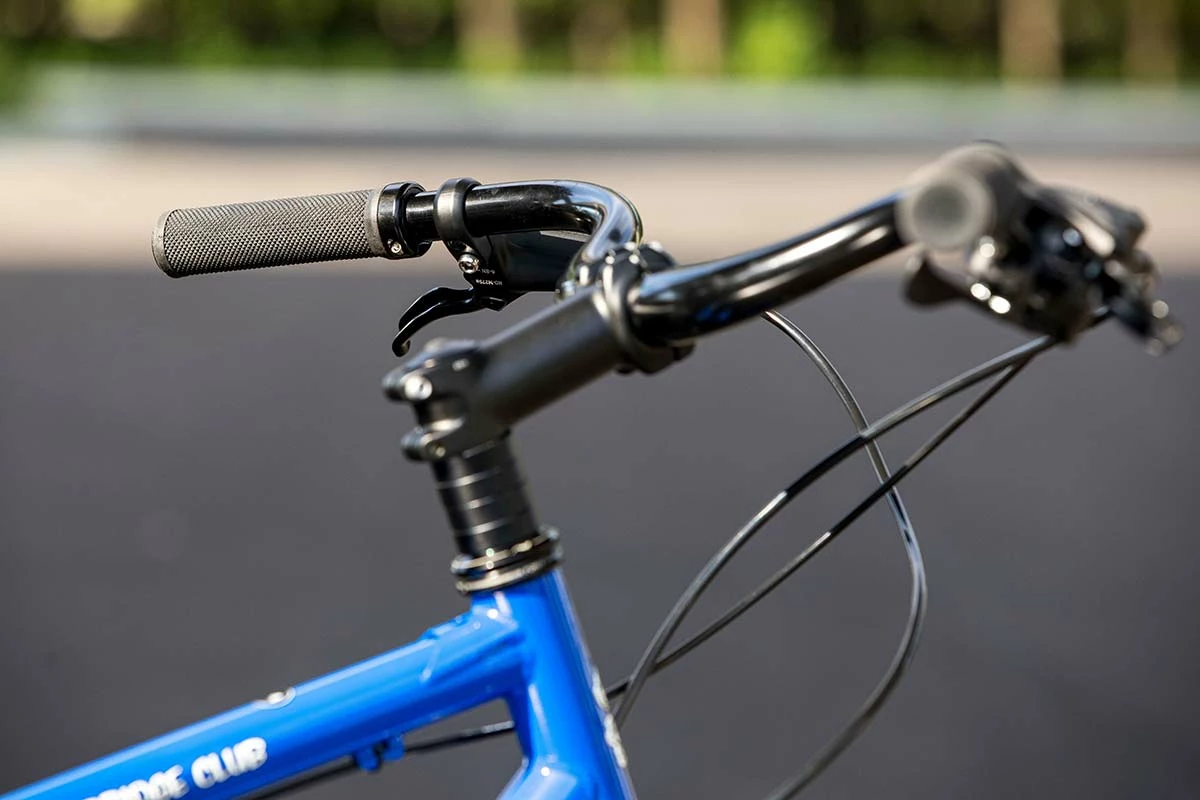

Potence Promax, 31,8 mm
Guidon Surly Terminal Bar
XS, S – 718 mm
M, L, XL – 735m
Grip / Tape Velo Noir
Selle WTB Volt 142
Tige de selle Promax, 27,2 mm
Pédalier Shimano Deore M5100 32t
Boîtier de pédalier Shimano BSA
Dérailleur avant N / A

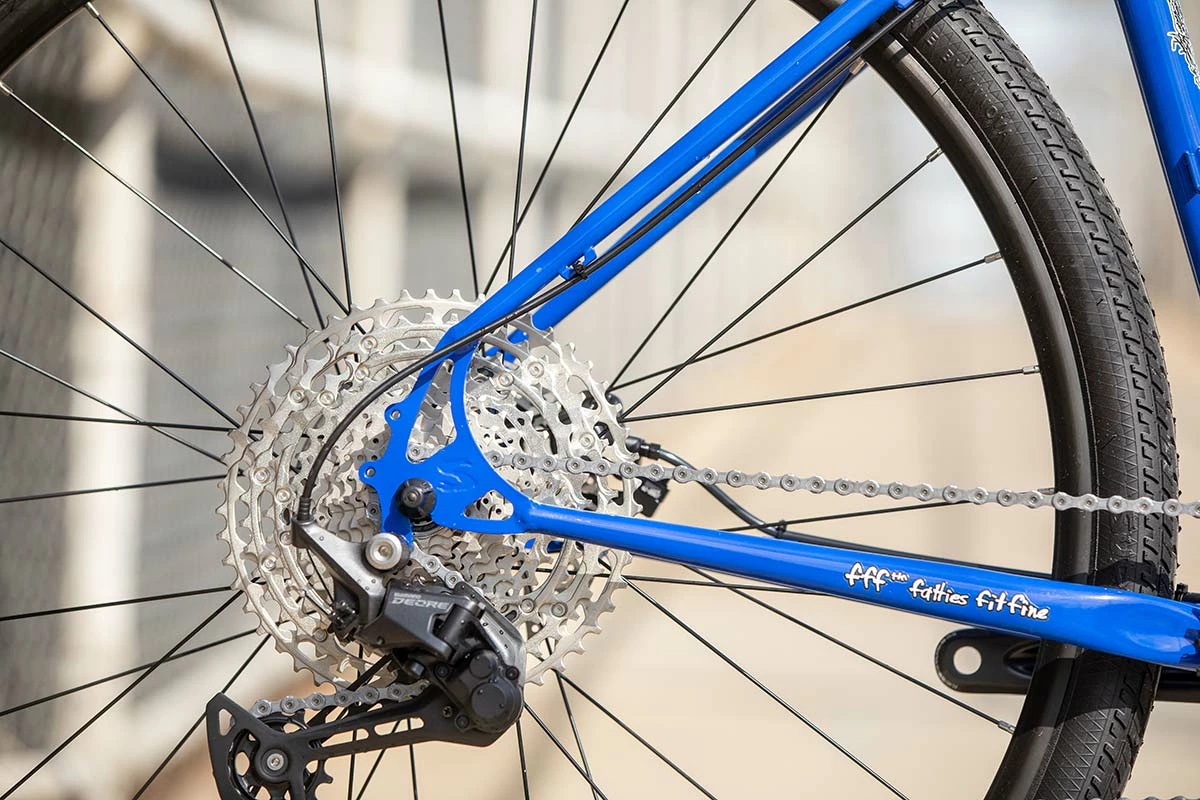

Dérailleur arrière Shimano Deore M5100 Shadow Plus
Cassette Shimano Deore CSM5100 11-51t
Chaîne KMC X11 EPT
Moyeu avant Novatec 9×100 QR
Moyeu arrière Novatec 9×141 QR 11 vitesses
Jantes WTB ST i21 TCS

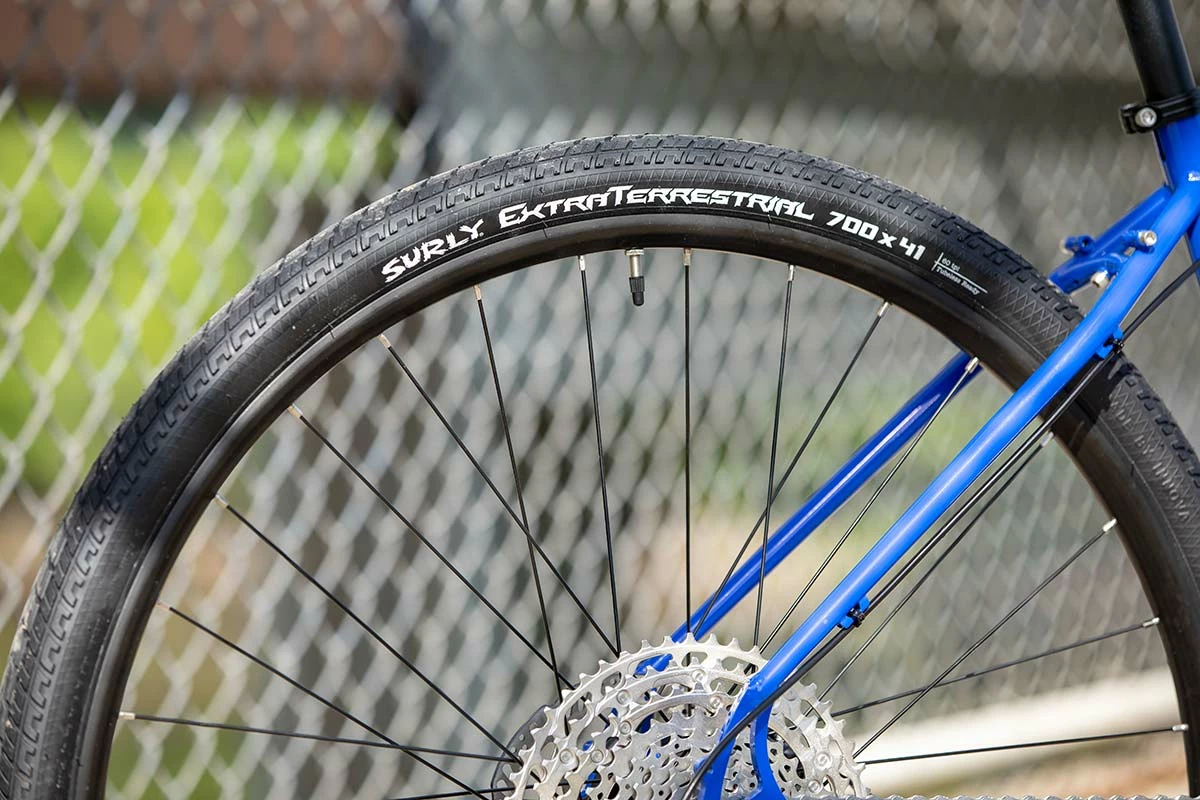

Pneus Surly Extraterrestrial 700×41, 60tpi Tubeless Ready

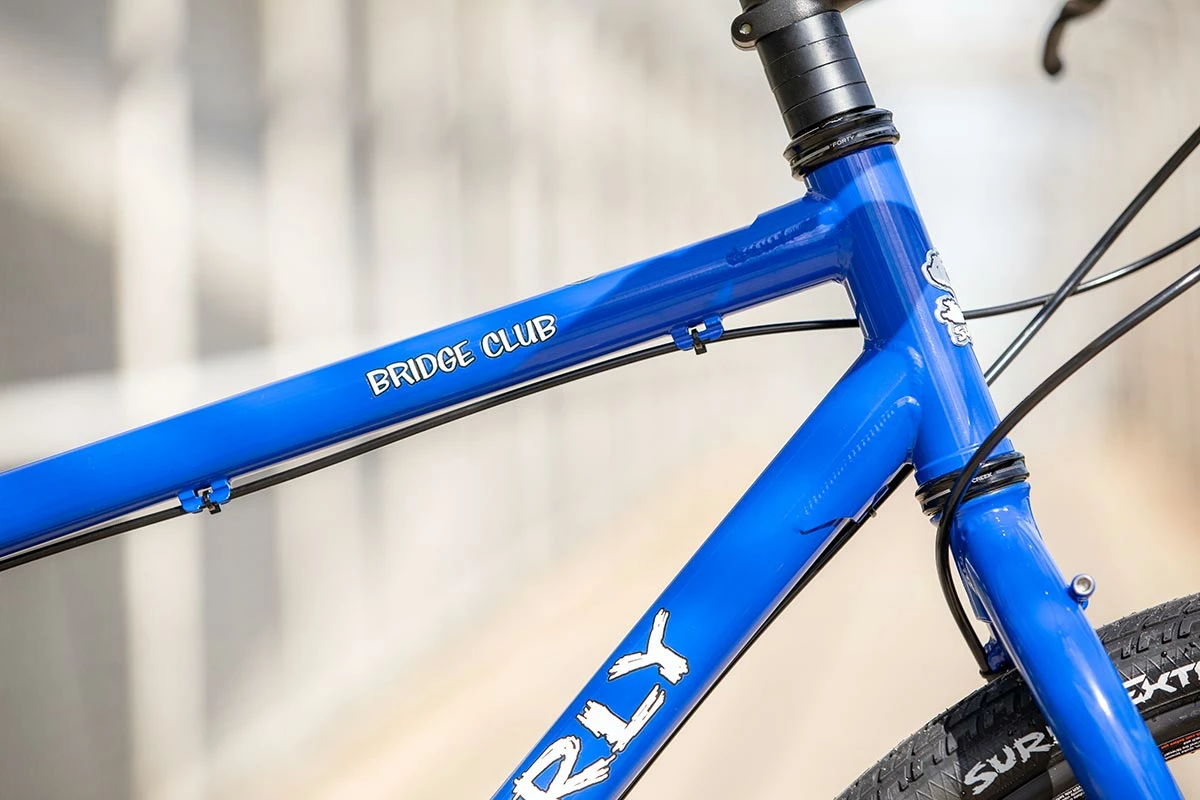

Frame Construction

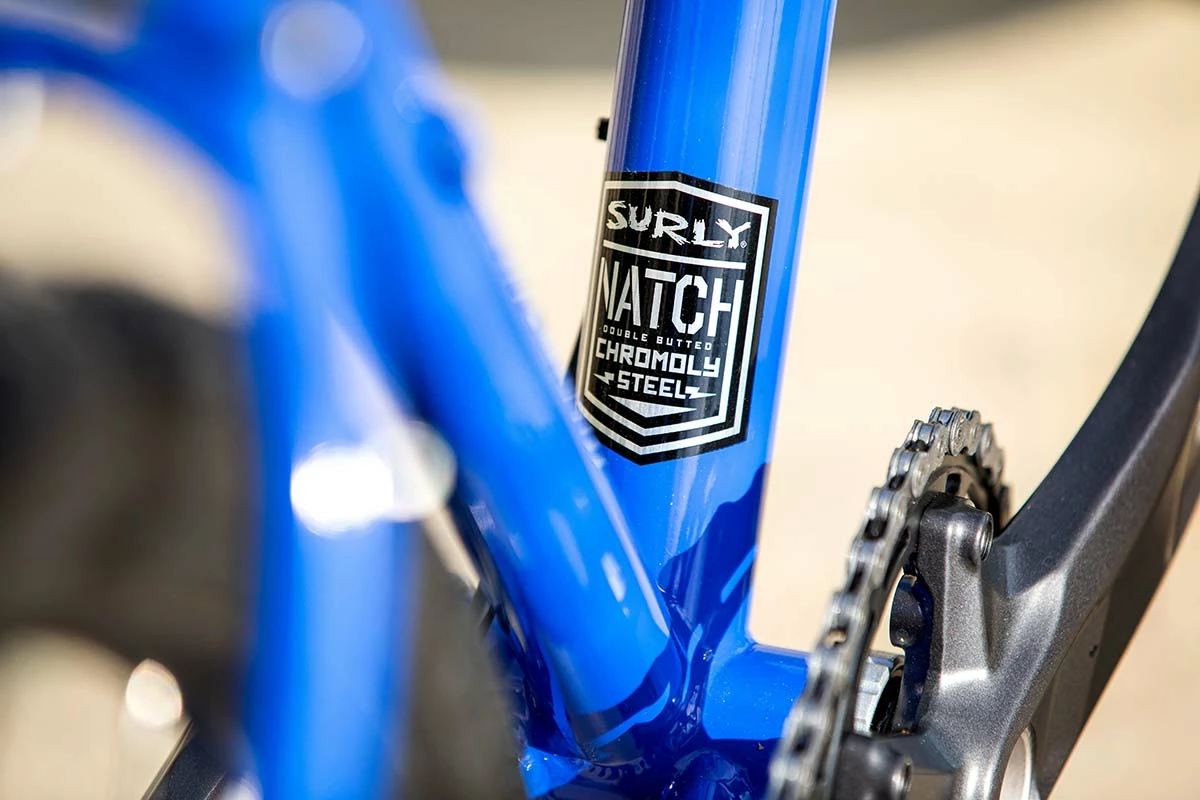

4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork Construction
4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Rear Dropout Configuration
Vertical
Rear Hub Spacing
« Gnot-Boost » 138mm
10 x 135mm or 10 x 141mm
Front Hub Spacing
10 x 100mm
Rear Brake
Disc – 51mm I.S. (180mm max rotor)
Front Brake
Disc – 51mm I.S. (203mm max rotor)

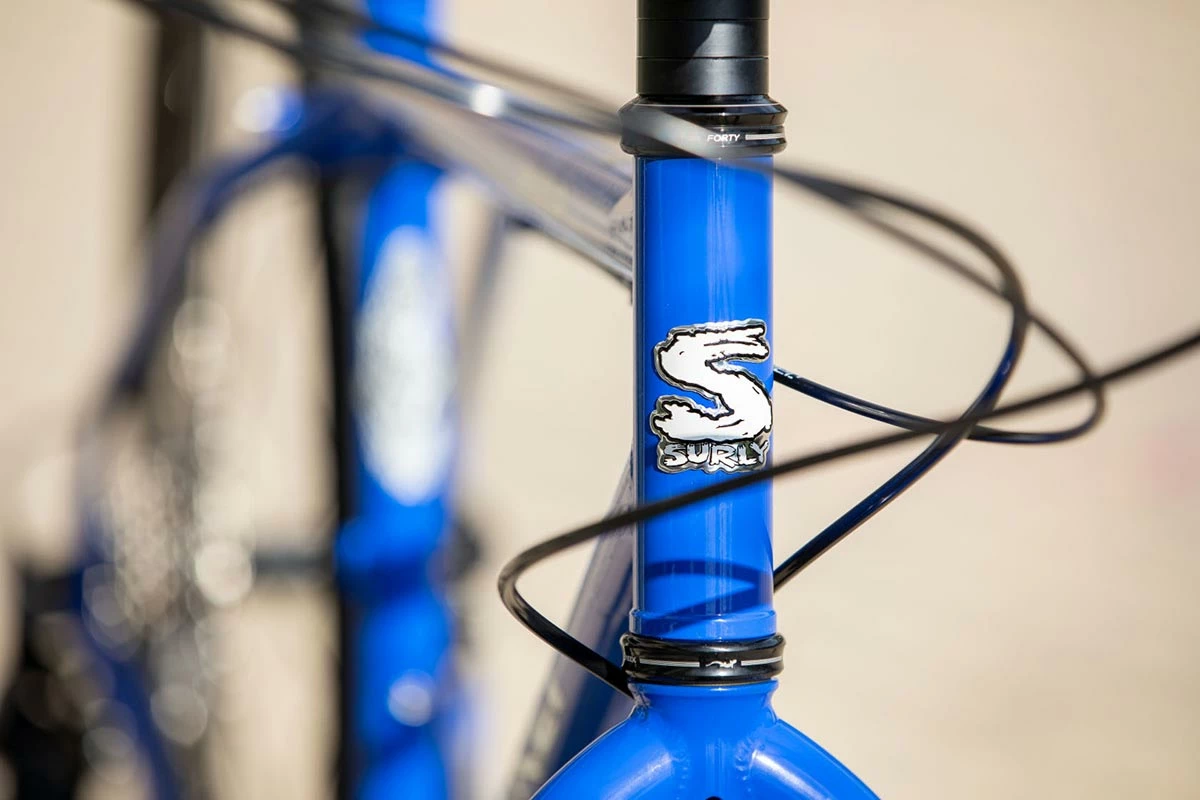

Head Tube
Ø34mm
Steerer Tube
Ø28.6mm (1-1/8″)
Crown Race
Ø30mm (1-1/8″)
Stock Headset Upper (S.H.I.S.)
EC34/28.6
Stock Headset Lower (S.H.I.S.)
EC34/30
Seat Collar
Ø30mm
Seatpost
Ø27.2mm
Front Derailleur (Clamp)
High direct mount top-pull (Ø28.6mm)
26mm offset adapter (not included) for 135mm rear hub spacing
29mm offset adapter (not included) for 141mm rear hub spacing
Max Chainring (CL)[3]
1x (Mtn): 34T
2x (Mtn): 26/40T
3x (Mtn): 22/36/44T
1x (Boost): 40T
2x (Boost): 32/42T
Bottom Bracket
73mm threaded (1.37″ x 24TPI)
Tire Clearance Frame [1]/[2]
26 x 3.0″ (26 x 2.8″ with fenders)
27.5 x 2.8″ (27.5 x 2.6″ with fenders)
700c x 47 with or without fenders
Tire Clearance Fork [1]
26 x 3.0″ (26 x 2.8″ with fenders)
27.5 x 2.8″ (27.5 x 2.6″ with fenders)
700c x 47 with or without fenders
Rigid Fork Spec
420 x 43mm
Max Suspension Fork Length [4]
N/A
Bottle Mounts Frame
2 Three-Pack (XS)
1 Standard + 2 Three-Pack (S – XL)

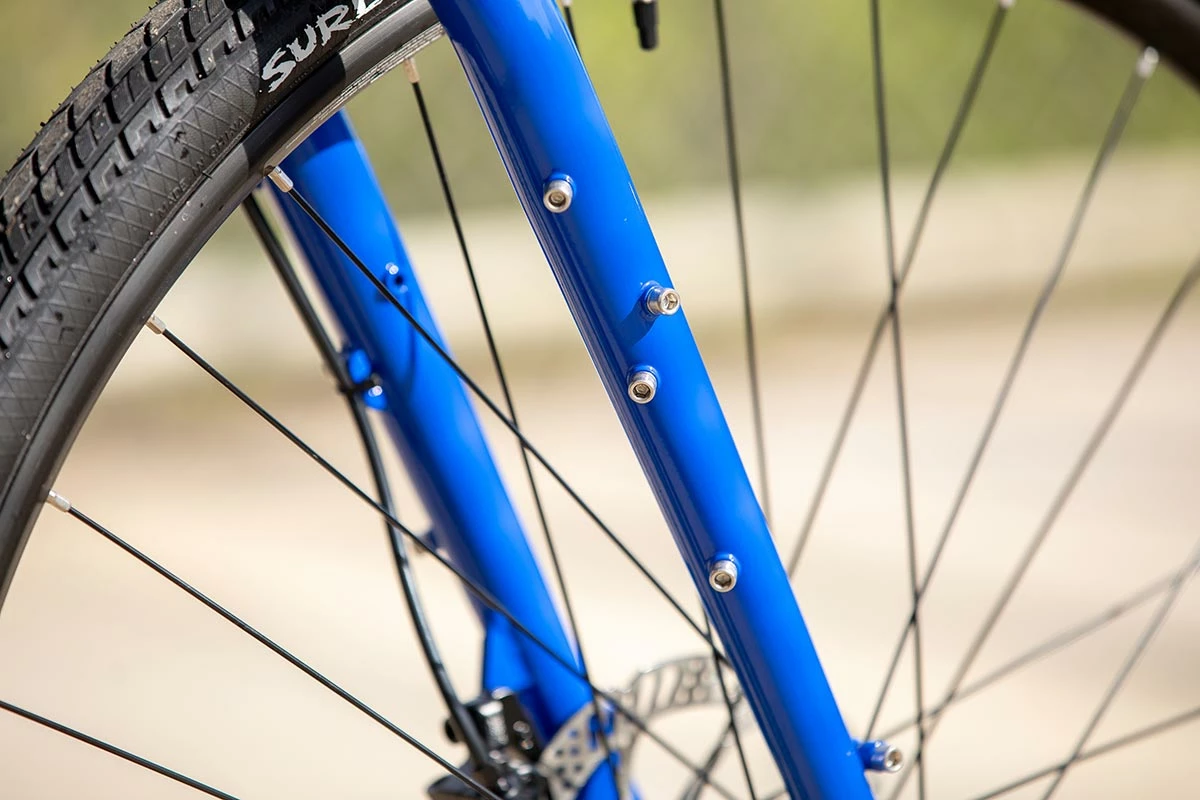

Bottle Mounts Fork
2 Three-Pack
Rack Mounts Frame
Yes (upper and lower threaded)
Rack Mounts Fork
Yes (upper, lower, and mid-blade threaded)
Fender Mounts Frame
Yes
Fender Mounts Fork
Yes

[1] Different tire and rim combinations will result in different clearances. [2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.[3] Listed chainring clearance is worst case scenario. Clearances vary widely depending on components and configurations.[4] Suspension fork length listed at full extension (not at sag)
